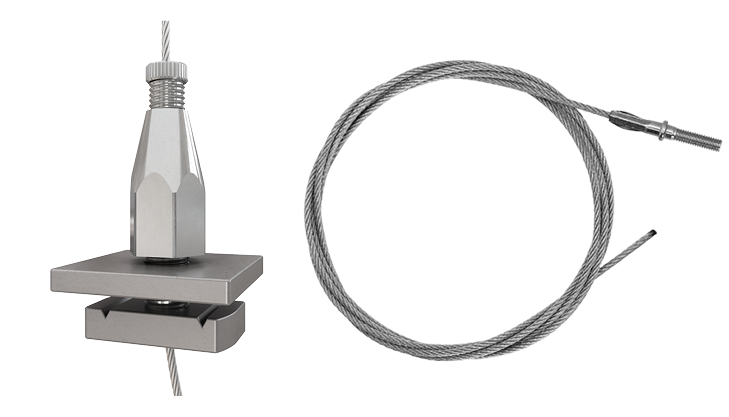

Trapeze Plus FR – Channel Nut Single Channel, Fire Rated Hanger

SKU # MTZ2-N, MTZ3-N, MTZ4-N

The Trapeze Plus FR with Channel Nut has been specifically designed to work with our Universal Brackets in the ‘u’ orientation or traditional channel systems.

Max Working Load

Max Working Load:

225 kg

Fire Testing

Fire Testing:

Externally tested to F120 Standards

Wire Drop Length

Wire Drop Length:

1m-10m (bespoke lengths available on request)

Enquire Now

Product Downloads

Trapeze Plus FR - Technical Data PackBuilding Services Product Guide
View all downloads
Trapeze Plus FR – Channel Nut Single Channel, Fire Rated Hanger
SKU # MTZ2-N, MTZ3-N, MTZ4-N
1
1
1
1

Fire Rated, Fast and Built to Last

The Trapeze Plus FR with Channel Nut is a fire-rated, single-channel wire rope hanger designed for fast, safe, and flexible suspension of building services.

Featuring internal wire gripping technology, it locks wire securely without tools, creating adjustable suspension brackets compatible with Gripple Universal Bracket (in the ‘u’ orientation) and traditional channel systems.

Supplied in ready-to-install kits, it streamlines the installation of ductwork, pipework, cable containment, busbars, and more. It’s BRE tested to F120 for fire resistance and meets BS476 Part 20 / DIN4102 Part 2 standards.

Lighter and faster than threaded rod and strut, it reduces time on site, minimises risk, and eliminates hot works. Trusted by professionals, it delivers high load capacity, easy adjustment, and outstanding UK-engineered quality, alongside our expert technical support throughout projects.

Read More

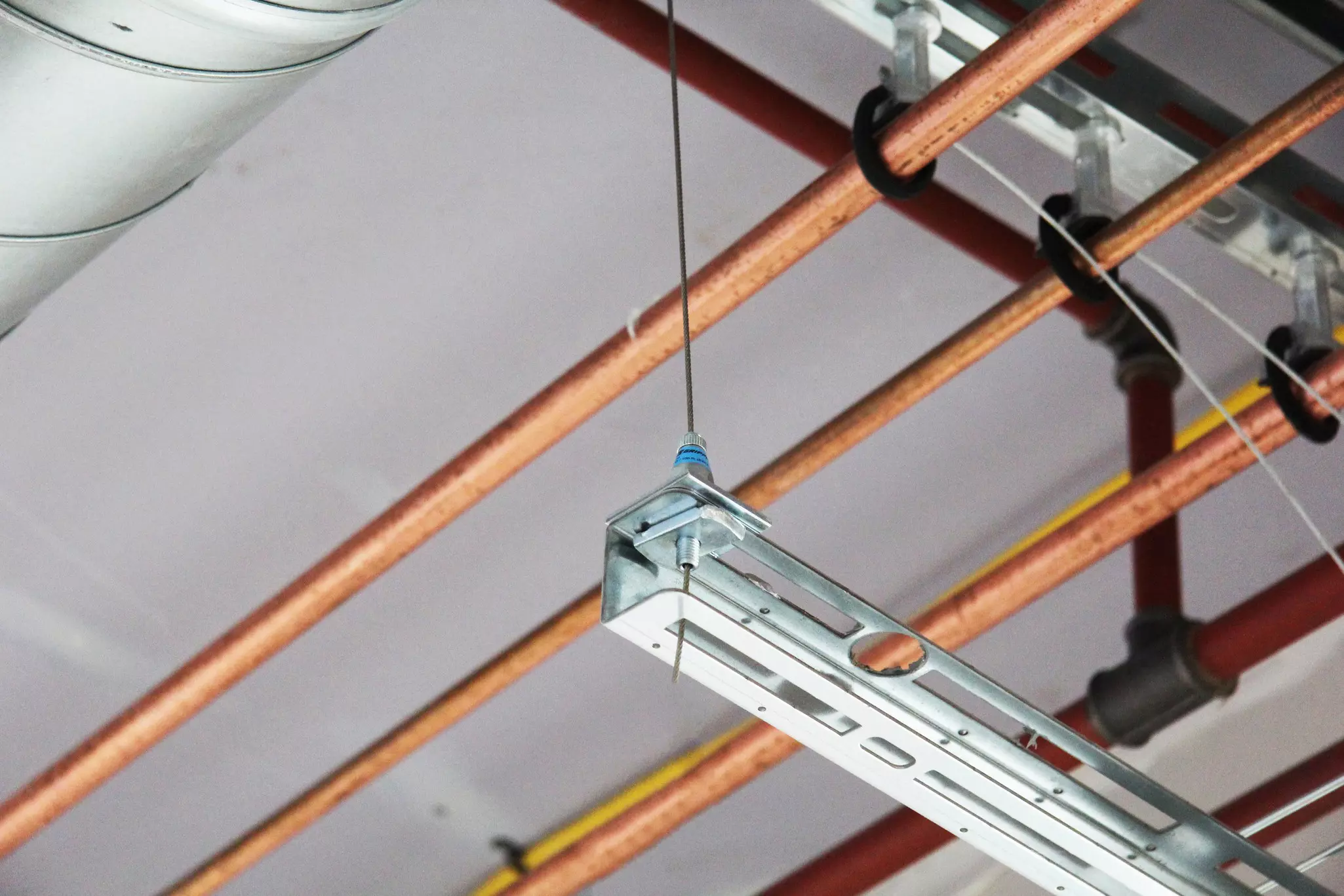

Strong

Strong

The Trapeze Plus FR Flange Nut has high strength capacities with a max load of 225kg (No. 4).

Technical Support

Technical Support

Our in-house, UK-based team is on hand to help you every step of the way. They can provide bespoke technical literature, such as site drawings, and can also visit project sites to support installs.

Enhanced Safety

Enhanced Safety

The fire-rated trapeze hanger reduces time spent working at height and eliminates hot work, ensuring that your team’s safety is prioritised.

Fire Tested Performance

Fire Tested Performance

Supplied with fire-resistant wire and externally tested to F120 Standards.

Fast Install

Fast Install

Cut down on installation time with Gripple; our wire suspension products require no pre-cutting or heavy machinery, with minimal training required.

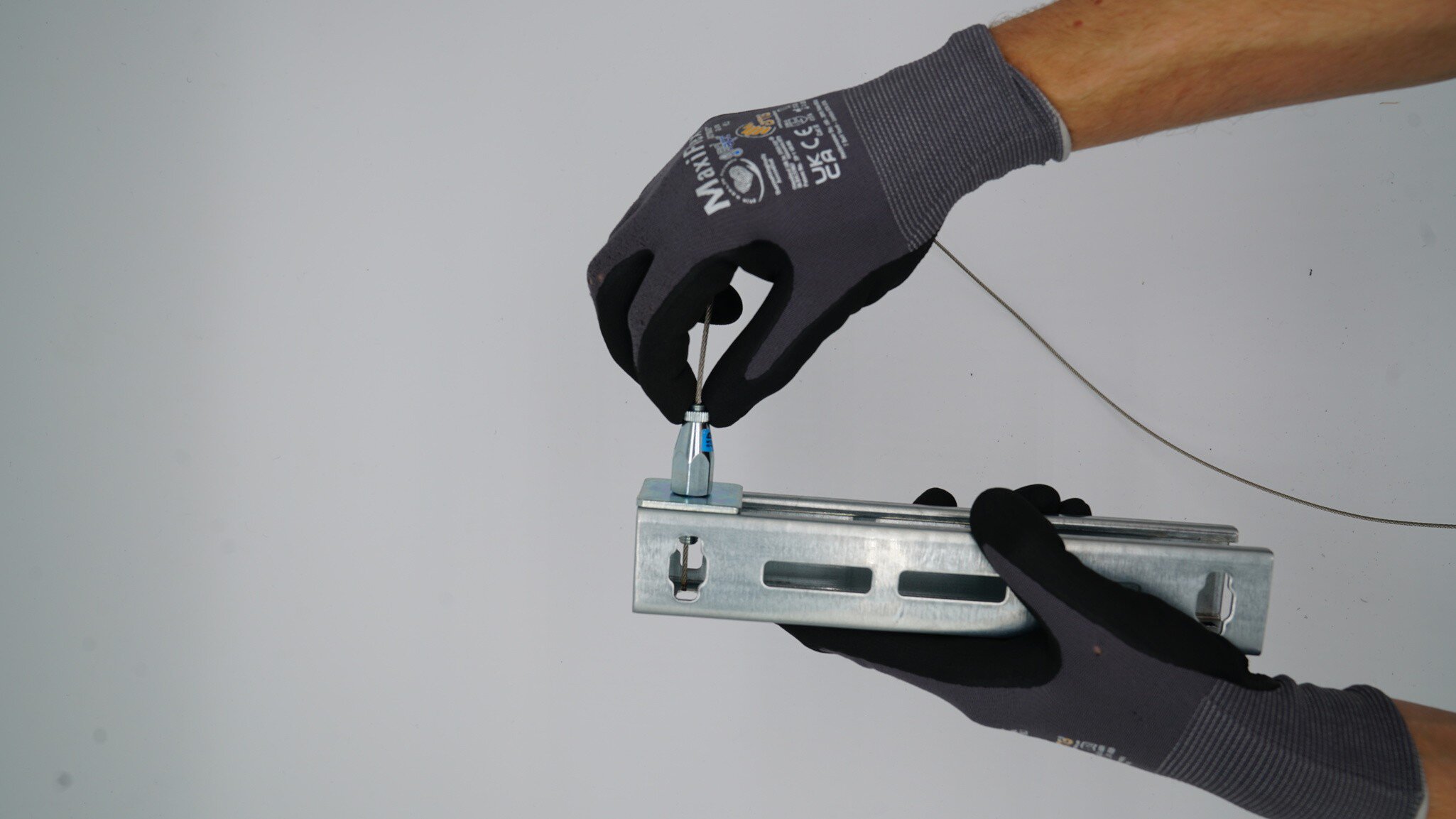

Secure Adjustment Feature

Secure Adjustment Feature

The easy-to-use release mechanism allows you to adjust the drop height. When complete, simply screw down to lock in place and prevent tampering.

Strong

Strong

The Trapeze Plus FR Flange Nut has high strength capacities with a max load of 225kg (No. 4).

Technical Support

Technical Support

Our in-house, UK-based team is on hand to help you every step of the way. They can provide bespoke technical literature, such as site drawings, and can also visit project sites to support installs.

Enhanced Safety

Enhanced Safety

The fire-rated trapeze hanger reduces time spent working at height and eliminates hot work, ensuring that your team’s safety is prioritised.

Fire Tested Performance

Fire Tested Performance

Supplied with fire-resistant wire and externally tested to F120 Standards.

Fast Install

Fast Install

Cut down on installation time with Gripple; our wire suspension products require no pre-cutting or heavy machinery, with minimal training required.

Secure Adjustment Feature

Secure Adjustment Feature

The easy-to-use release mechanism allows you to adjust the drop height. When complete, simply screw down to lock in place and prevent tampering.

Range Variants

The Trapeze Plus FR – Flange Nut is available in sizes 2, 3 & 4.

Load Rating Safety Factor Wire Size
Trapeze Plus FR 2 45 kg 3:1 2.0 mm
Trapeze Plus FR 3 90 kg 3:1 3.0 mm
Trapeze Plus FR 4 225 kg 3:1 4.75 mm

Ready To Install
Suspension Kit

We supply Trapeze Plus FR hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Loop

Hanger using a non-invasive, simple, choke knot technique

Safe Working Load: 325 kg
Available Sizes:
No. 1 : 1.5 mm
No. 2: 2.0 mm
No. 3: 3.00 mm
No. 4: 4.75 mm
No. 5: 6.00 mm

*System working load based on product and substrate fixing combined

View Substrate Fixing

Stud

Ideal for anchoring into concrete ceilings.

Safe Working Load: 250 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)
No.4: 4.75 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Channel Nut

Designed specifically for use with channel, to suspend all types of building services.

Safe Working Load: 250 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)
No.4: 4.75 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Toggle

For fastening through profile roof cladding, light fittings and other cavities.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

45° Eyelet

For attachment to a variety of substrates using suitable fixings.

Safe Working Load: 110 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Ring Anchor

Set directly into cracked or non-cracked concrete with a hammer. Ideal for the fast suspension of services including electrical, HVAC and pipework.

Max Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2 : 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Max Safe Working Load: 45 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

18mm Decking Wedge

Designed for use with Ribdeck S60 and Ribdeck 80

Safe Working Load: 90 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

25mm Decking Wedge

Designed for use with SMD R51, Comflor 51, Holorib, Multideck 50 and Metfloor 55.

Safe Working Load: 90 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Alphawedge

Designed for use with Ribdeck E60.

Safe Working Load: 90 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Multiwedge 2

For quick and secure locking into Kingspan Multideck 60 and 80 decking.

Safe Working Load: 90 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

TR60 Wedge

Ideal for the suspension of services from Structural Metal Decks TR60+ and TR80+

Safe Working Load: 90 kg
Available Sizes:
No. 2: 2 mm (Wire Diameter)
No. 3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

MF Wedge

For the suspension of services from Metfloor® 60 and 80 profiles manufactured by Composite Metal Flooring

Safe Working Load: 90 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Shotfire

A shot-fired hanger solution with pre-mounted nail end fixing, for securing installation into concrete or composite metal decking.

Safe Working Load: 15 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fittings.

Safe Working Load: 90 kg
Available Sizes:
No. 1: 1.5 mm
No. 2: 2.0 mm
No. 3: 3.00 mm

*System working load based on product and substrate fixing combined

View Substrate Fixing

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing
Snap Hook - 4 Snap Hook - 4

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

2 Wire Length

From 1 – 10 m

(Other lengths available on request)

All our ready‑to‑install suspension kits include pre‑cut, looped, and fused wire in your chosen length. Standard options are available from 1 – 10 m.

3

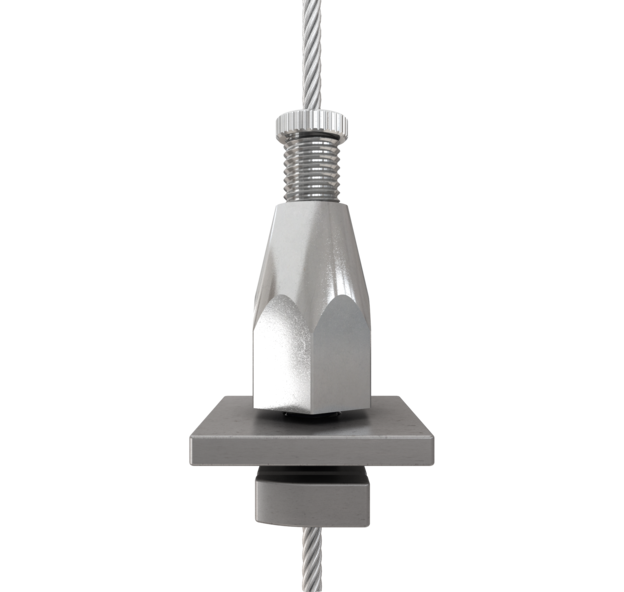

Trapeze Plus FR Hanger

The Trapeze Plus FR with Channel Nut has been specifically designed to work with our Universal Brackets in the ‘u’ orientation or traditional channel systems.

  • Safe Working Load: 225 kg
  • Fire Testing: BRE tested to F120
  • Available Drop Lengths: 1 – 10 m (bespoke lengths available on request)

Have you found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or use our additional resources.

Speak To An ExpertGet Technical Support
1
1
1
1

Trapeze Plus FR – Channel Nut

SKU # MTZ2-N, MTZ3-N, MTZ4-N

The Trapeze Plus FR with Channel Nut has been specifically designed to work with our Universal Brackets in the ‘u’ orientation or traditional channel systems.

Key Specifications

Max Working Load: 225 kg
Fire Testing: Externally tested to F120 Standards
Wire Drop Length: 1m-10m (bespoke lengths available on request)

Available Sizes

No. 2: 45 kg
No. 3: 90 kg
No. 4 : 225 kg
Find a SupplierView Product Page

Product Downloads

Trapeze Plus FR – Technical Data PackBuilding Services Product Guide

Found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or find a local stockist.

Speak to an ExpertGet Technical Support

“This was the first time we have used the Trapeze Plus range. We were very impressed with the ease of installation, and support provided by Gripple. We have already implemented the Trapeze Plus into other projects. Gripple have helped us reduce installation time and costs spent on labour.”

Site Supervisor, Barlows UK Ltd

Read the full case study here

Common Applications

Electrical

Combined Modules

HVAC

Pipework

Electrical

Combined Modules

HVAC

Pipework

Related Downloads:

Trapeze Plus FR – Technical Data Pack
Trapeze Plus FR (MTZ2) – Lloyds Approval
Trapeze Plus FR (MTZ3) – Lloyds Report
Trapeze Plus FR (MTZ4) – Lloyds Report

Frequently Asked Questions

Gripple Trapeze Plus FR is a fire-rated wire suspension system for securing ductwork, cable containment, pipework, and other building services quickly and safely. The inclusion of the Channel Nut means it’s compatible with our Universal Bracket in the ‘u’ orientation.

Yes. Trapeze Plus FR is BRE tested to F120 and meets BS476 Part 20 / DIN4102 Part 2 standards. It is also provided with fire-resistant wire, making it ideal for fire-resistant applications.

Unlike a threaded rod, Trapeze Plus FR requires no cutting, fewer tools, and faster installation. This saves time, reduces risk, and improves flexibility on-site.
