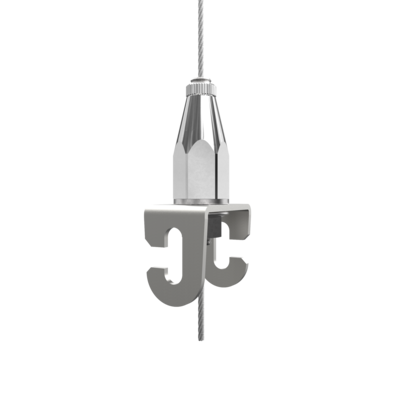

Trapeze Plus FR – Cable Basket Adaptor Fire Rated Cable Basket Hanger

SKU # MTZ2-SS-CB6-F

The Cable Basket Adaptor variation of the Trapeze Plus FR has been specifically designed to include a clip for direct attachment to cable trays and baskets.

Safe Working Load

Safe Working Load:

45 kg

Wire Drop Length

Wire Drop Length:

1 - 10m (bespoke lengths available on request)

Compliant

Compliant:

Externally tested to F120 Standards

Enquire Now

Product Downloads

Trapeze Plus FR - Technical Data PackTrapeze Plus FR - DOP Certificate (CE)
View all downloads

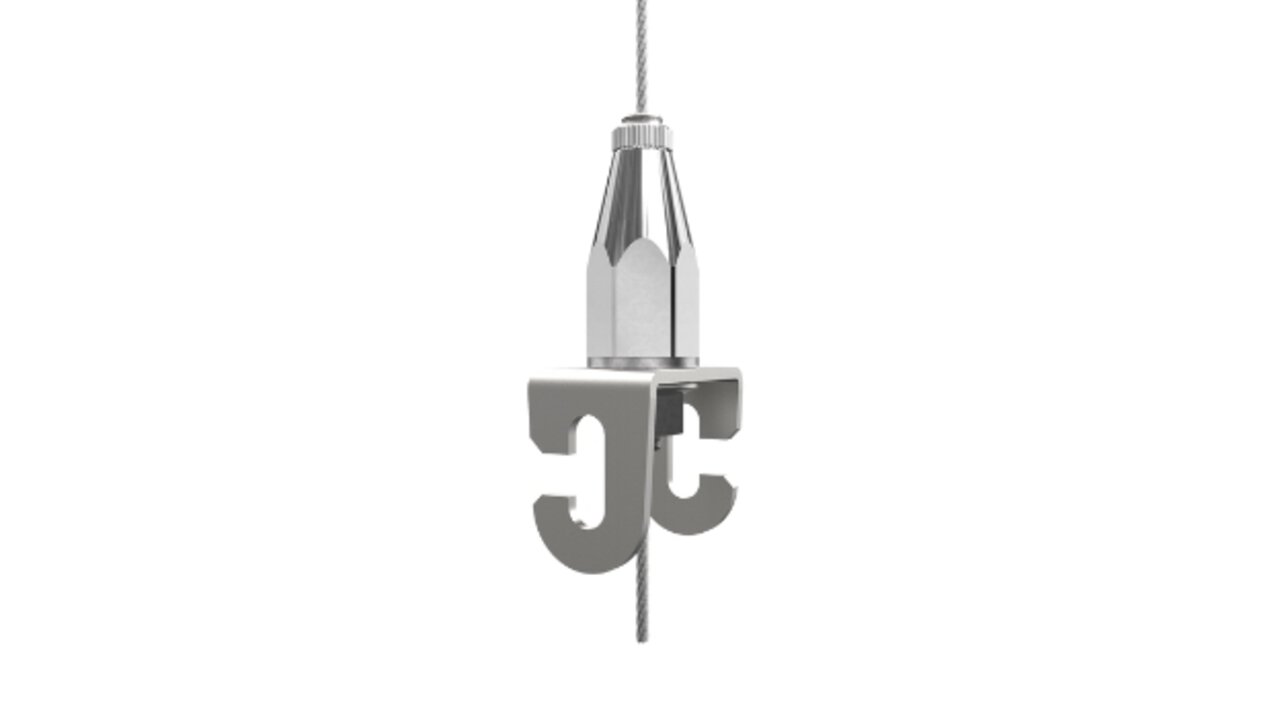

Trapeze Plus FR – Cable Basket Adaptor Fire Rated Cable Basket Hanger
SKU # MTZ2-SS-CB6-F
1
1

Fire-Rated Suspension Made Easy for Electrical Installs

The Trapeze Plus FR – Cable Basket Adaptor is a purpose-built, fire-rated wire suspension solution designed for fast and efficient electrical installations. Available in Trapeze size No.2, it clips directly to cable basket systems without the need for horizontal supports, further simplifying installation and saving crucial time on-site.

This smart adaptor integrates seamlessly with Gripple’s Trapeze Plus FR range, providing strong, code-compliant suspension with built-in fire resistance. Ideal for overhead cable basket runs, it’s perfect for contractors needing reliable fixing in tight spaces or retrofit scenarios.

Streamline your electrical services setup with a solution that’s safe, fast, and built to last. Gripple keeps your installations hanging strong.

Read More
Application Specific

Application Specific

The specially designed integrated clip enables quick attachment to cable baskets, significantly speeding up installation.

Technical Support

Technical Support

Our dedicated in-house team are available to help you throughout all stages of your project – from pre-installation site drawings to onsite visits.

Enhanced Safety

Enhanced Safety

The Trapeze Plus FR Range requires less time working at height and no hot works, ensuring safer conditions for installers.

Strong

Strong

No need to compromise on strength, the Trapeze Plus FR Cable Basket Adaptor supports loads up to 45kg with a 3:1 safety factor.

Compliant

Compliant

Externally fire tested according to BS EN 1363-1:2020, making regulation compliance simple.

Secure Adjustment Feature

Secure Adjustment Feature

The easy-to-use release mechanism allows you to adjust the drop height. When complete, simply screw down to lock in place and prevent tampering.

Application Specific

Application Specific

The specially designed integrated clip enables quick attachment to cable baskets, significantly speeding up installation.

Technical Support

Technical Support

Our dedicated in-house team are available to help you throughout all stages of your project – from pre-installation site drawings to onsite visits.

Enhanced Safety

Enhanced Safety

The Trapeze Plus FR Range requires less time working at height and no hot works, ensuring safer conditions for installers.

Strong

Strong

No need to compromise on strength, the Trapeze Plus FR Cable Basket Adaptor supports loads up to 45kg with a 3:1 safety factor.

Compliant

Compliant

Externally fire tested according to BS EN 1363-1:2020, making regulation compliance simple.

Secure Adjustment Feature

Secure Adjustment Feature

The easy-to-use release mechanism allows you to adjust the drop height. When complete, simply screw down to lock in place and prevent tampering.

Range Variants

The Trapeze Plus FR – Cable Basket Adaptor is available in one size.

Load Rating Safety Factor Wire Size
Trapeze Plus FR 2 45 kg 3:1 2.0 mm

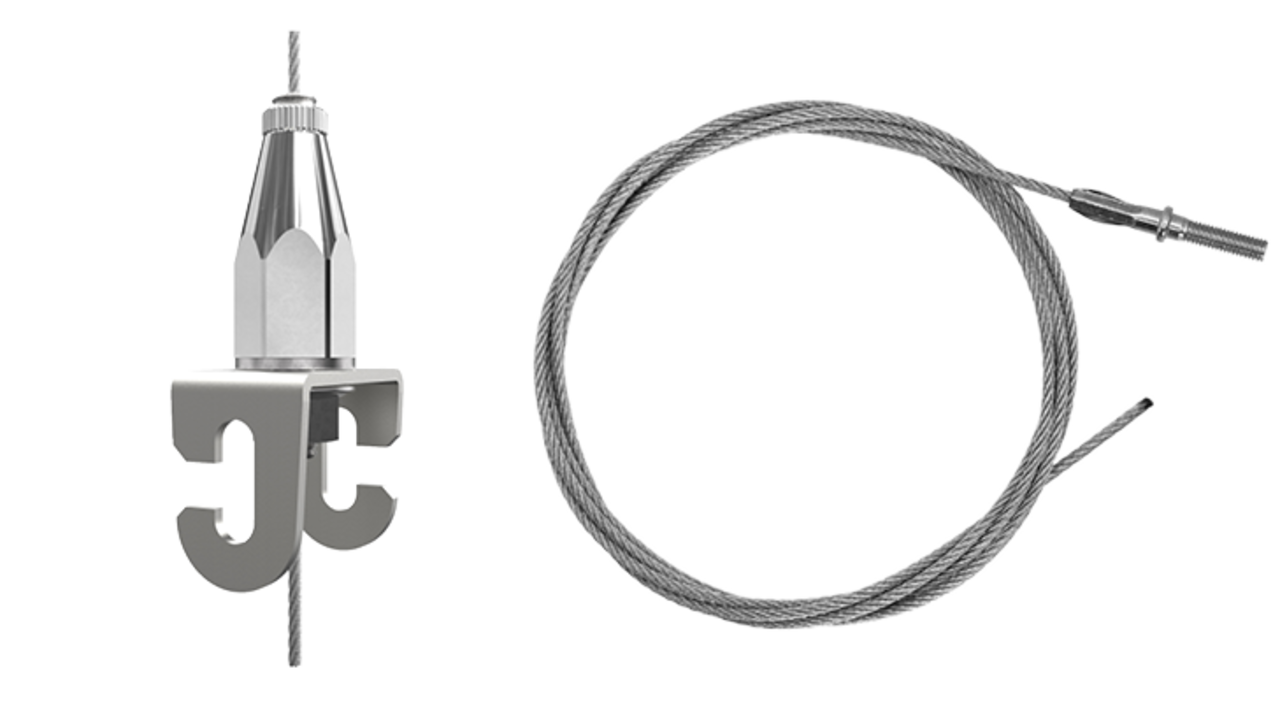

Ready To Install
Suspension Kit

We supply Trapeze Plus FR hangers as a ready to install suspension kit comprised of three parts.

End Fixing Your Substrate Fixing
Wire Your Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Substrate Fixing   (End Fixing)

All our suspension kits come with a wide range of substrate fixings designed to work with a variety of substrates and fixing points.
Discover which substrate fixings are available with this product below:

Loop

Hanger using a non-invasive, simple, choke knot technique

Safe Working Load: 325 kg
Available Sizes:
No. 1 : 1.5 mm
No. 2: 2.0 mm
No. 3: 3.00 mm
No. 4: 4.75 mm
No. 5: 6.00 mm

*System working load based on product and substrate fixing combined

View Substrate Fixing

Stud

Ideal for anchoring into concrete ceilings.

Safe Working Load: 250 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)
No.4: 4.75 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Channel Nut

Designed specifically for use with channel, to suspend all types of building services.

Safe Working Load: 250 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)
No.4: 4.75 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Toggle

For fastening through profile roof cladding, light fittings and other cavities.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

18mm Decking Wedge

Designed for use with Ribdeck S60 and Ribdeck 80

Safe Working Load: 90 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

25mm Decking Wedge

Designed for use with SMD R51, Comflor 51, Holorib, Multideck 50 and Metfloor 55.

Safe Working Load: 90 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

45° Eyelet

For attachment to a variety of substrates using suitable fixings.

Safe Working Load: 110 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

90° Eyelet

For fixing into concrete, steel or wood, using gas or power actuated tools, or appropriate screws.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

MF Wedge

For the suspension of services from Metfloor® 60 and 80 profiles manufactured by Composite Metal Flooring

Safe Working Load: 90 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Multiwedge 2

For quick and secure locking into Kingspan Multideck 60 and 80 decking.

Safe Working Load: 90 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Ceiling Anchor

Ideal for fixing Gripple hangers into concrete by knocking into a pre-drilled hole. Pull with a claw hammer to set.

Max Safe Working Load: 45 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Ring Anchor

Set directly into cracked or non-cracked concrete with a hammer. Ideal for the fast suspension of services including electrical, HVAC and pipework.

Max Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2 : 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Shotfire

A shot-fired hanger solution with pre-mounted nail end fixing, for securing installation into concrete or composite metal decking.

Safe Working Load: 15 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

TR60 Wedge

Ideal for the suspension of services from Structural Metal Decks TR60+ and TR80+

Safe Working Load: 90 kg
Available Sizes:
No. 2: 2 mm (Wire Diameter)
No. 3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fittings.

Safe Working Load: 90 kg
Available Sizes:
No. 1: 1.5 mm
No. 2: 2.0 mm
No. 3: 3.00 mm

*System working load based on product and substrate fixing combined

View Substrate Fixing

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing
Snap Hook - 4 Snap Hook - 4

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

2 Wire Length

From 1 – 10 m

(Other lengths available on request)

All our ready‑to‑install suspension kits include pre‑cut, looped, and fused wire in your chosen length. Standard options are available from 1 – 10 m.

3

Trapeze Plus FR Cable Basket Adaptor

The Cable Basket Adaptor variation of the Trapeze Plus FR has been specifically designed to include a clip for direct attachment to cable trays and baskets.

  • Max Working Load: 45 kg
  • Wire Drop Length: 1-10 m (bespoke lengths available on request)
  • Compliant: Externally Tested to F120

Have you found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or use our additional resources.

Speak To An ExpertGet Technical Support
1
1

Trapeze Plus FR – Cable Basket Adaptor

SKU # MTZ2-SS-CB6-F

The Cable Basket Adaptor variation of the Trapeze Plus FR has been specifically designed to include a clip for direct attachment to cable trays and baskets.

Key Specifications

Safe Working Load: 45 kg
Wire Drop Length: 1 – 10m (bespoke lengths available on request)
Compliant: Externally tested to F120 Standards

Available Sizes

No. 2: 45 kg
Find a SupplierView Product Page

Product Downloads

Trapeze Plus FR – Technical Data PackTrapeze Plus FR – DOP Certificate (CE)

Found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or find a local stockist.

Speak to an ExpertGet Technical Support

“This was the first time we have used the Trapeze Plus range. We were very impressed with the ease of installation, and support provided by Gripple. We have already implemented the Trapeze Plus into other projects. Gripple have helped us reduce installation time and costs spent on labour.”

Site Supervisor, Barlows UK Ltd

Read the full case study here

Common Applications

Electrical

Electrical

Related Downloads:

Trapeze Plus FR – Technical Data Pack
Trapeze Plus FR (MTZ2) – Lloyds Approval
Trapeze Plus FR – DOP Certificate (CE)
Trapeze Plus FR No. 2 (MTZ2) TM65
Building Services Product Guide

Frequently Asked Questions

It’s designed for the fast and secure suspension of fire rated cable tray applications, eliminating the need for traditional channel bearers and reducing installation time.

It reduces time spent working at height and removes the need for hot works and heavy machinery on site.

Yes, it features an ergonomic release button for simple adjustment and a locking indicator to ensure the wire is securely fixed in place.
