Universal Clamp QT – (Quarter Turn Height Adjustable) Height Adjustable Pipe Clamp for Gripple Brackets

SKU # GC2

Our Height Adjustable Universal Clamp provides precision alignment and fast installation in one universal clamp. Designed for simple quarter turn fixing to our Gripple bracket range.

Max Load Rating

Max Load Rating:

75 kg

Maximum Pipe Diameter

Maximum Pipe Diameter:

150 mm

Noise Reduction

Noise Reduction:

> 23 dB (depending on variant)

Enquire Now

Product Downloads

Height Adjustable Universal Clamp Technical Data Pack - ENGBuilding Services Product Guide
SKU # GC2
1
1
1
1
1
1

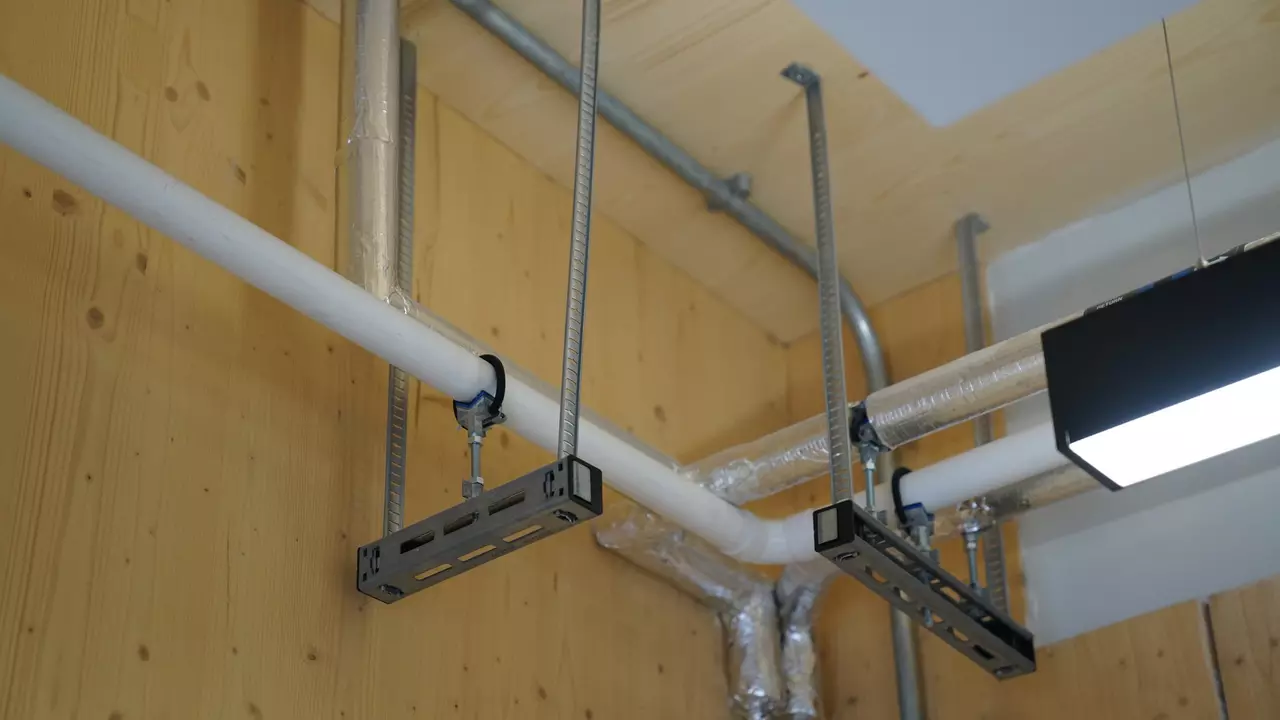

One Clamp. Total Control. Discover our Height Adjustable Universal Pipe Clamp

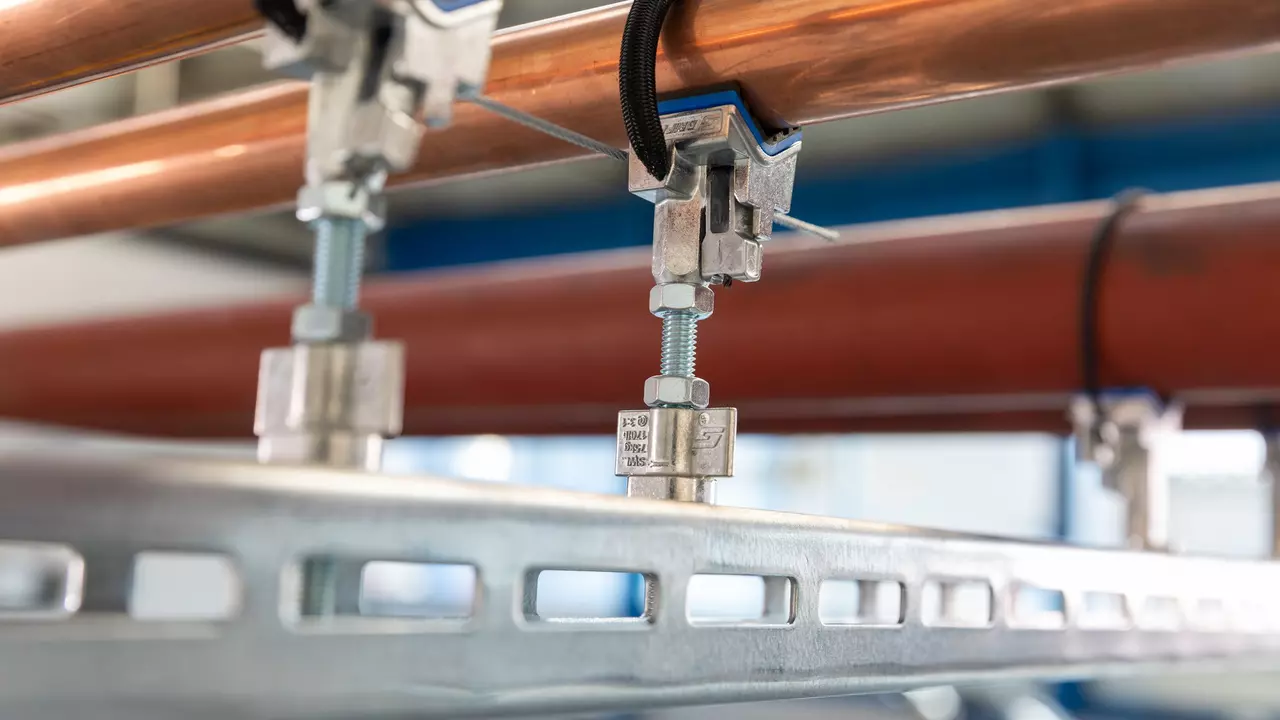

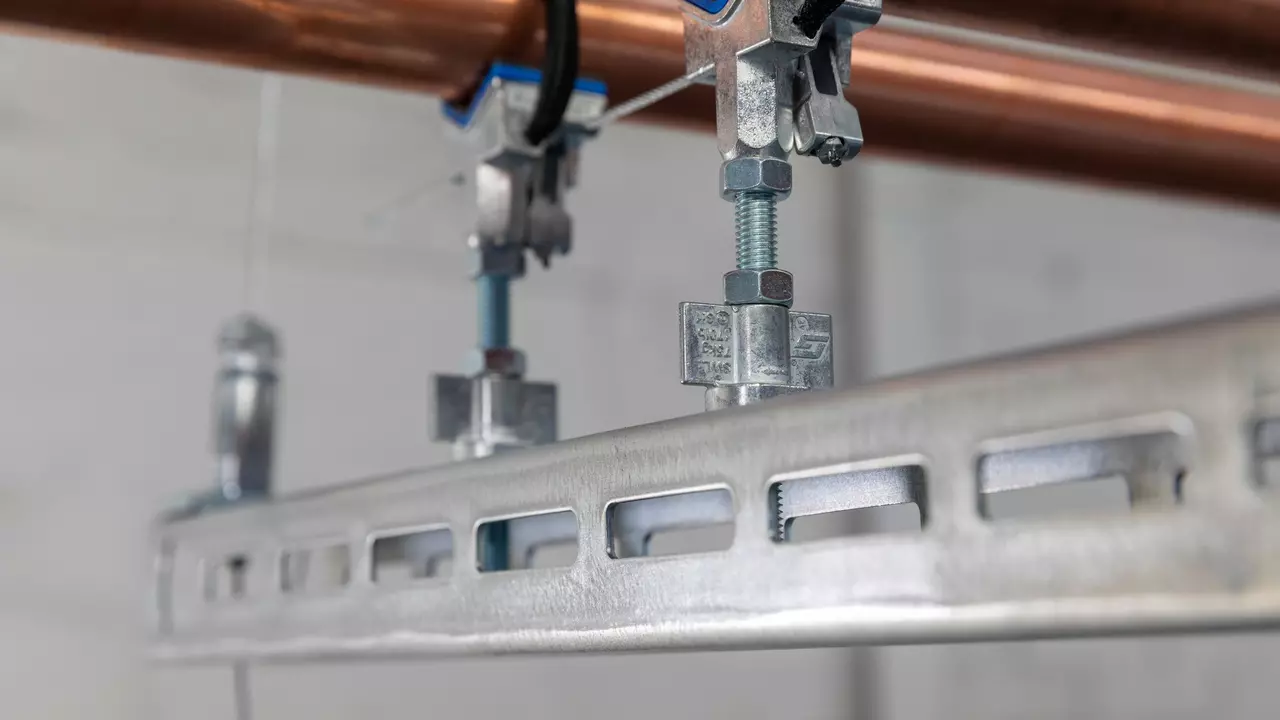

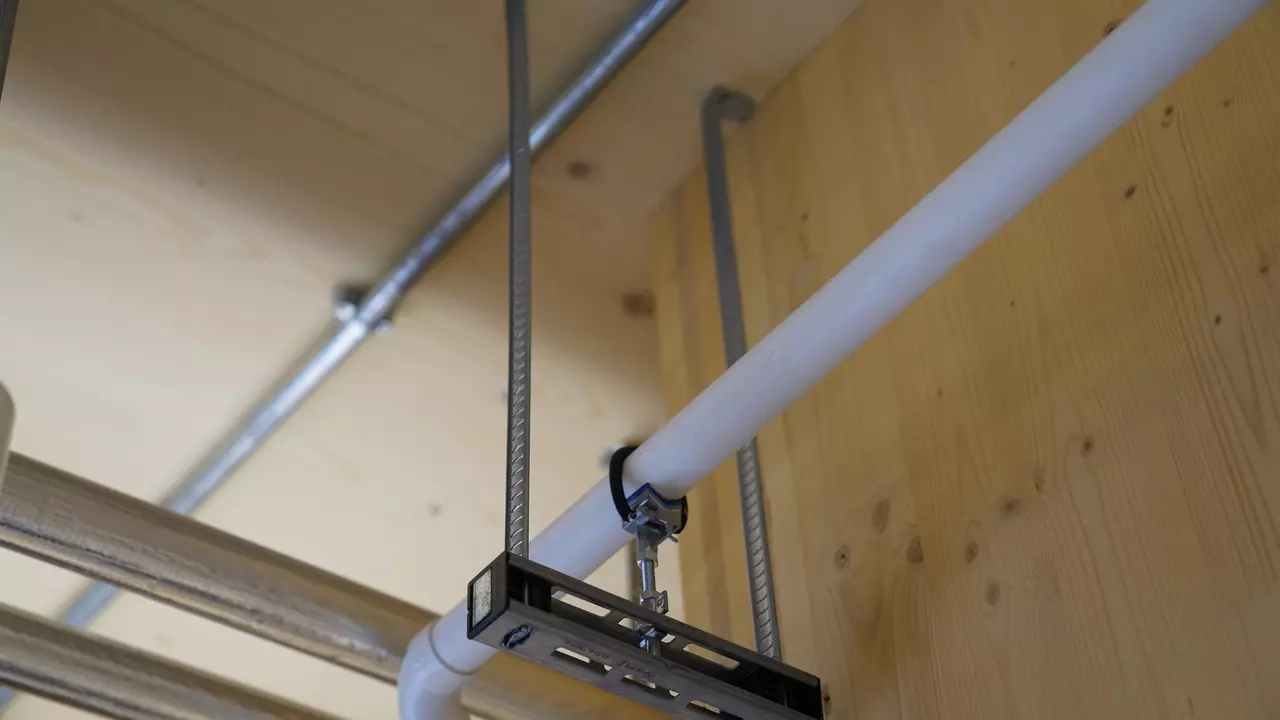

Our Universal Clamp QT (Quarter Turn) Height Adjustable, is engineered for speed, flexibility, and precision. Designed to support pipe and conduit from 15 mm to 152 mm, this clamp features an integrated thread mechanism for easy height adjustment, ideal for aligning mixed-diameter services along a consistent centre line.

Installation is quick and tool-free thanks to Gripple’s Quarter Turn technology, which allows for rapid attachment to our Universal, Low Profile and Fast Trak brackets.

Choose from three pad variants, Standard, Large, or Acoustic, for added vibration insulation and noise reduction up to 23 dBA. With a 75 kg safe working load and compatibility with insulated pipe collars, it’s a robust, all-in-one solution that simplifies your install and reduces the need for multiple SKUs on site.

Read More

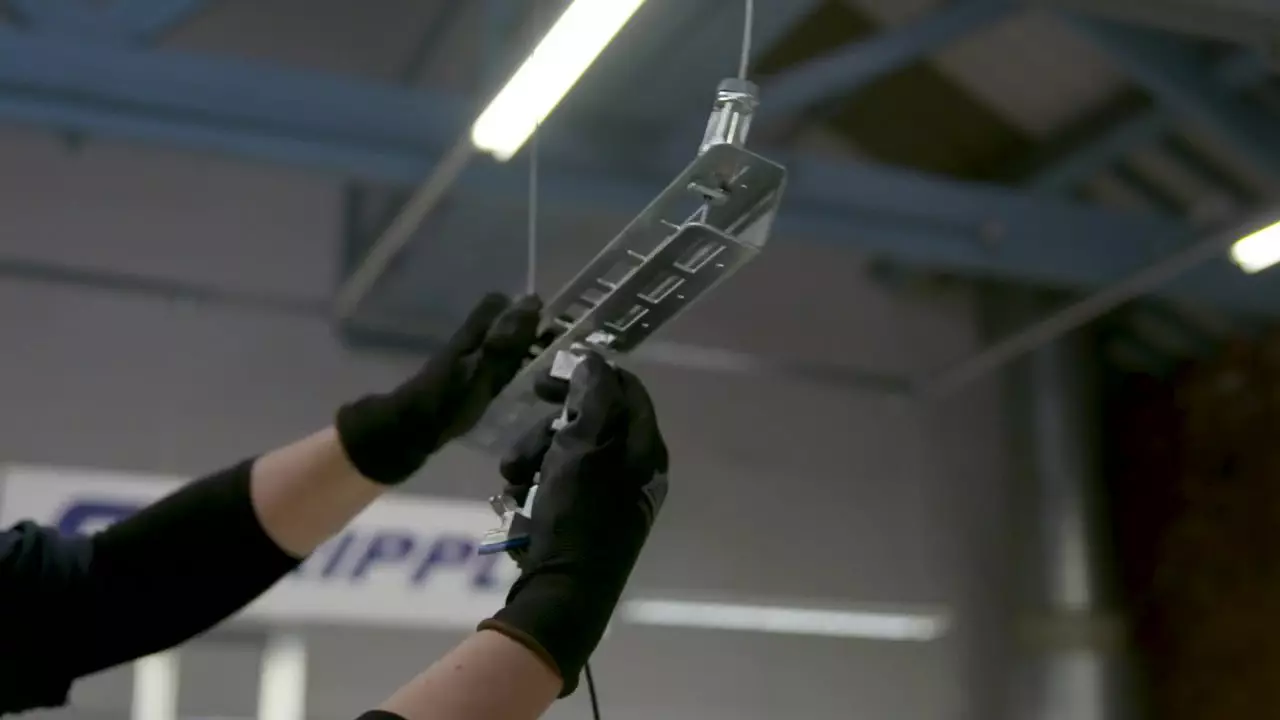

Quarter Turn Installation

Quarter Turn Installation

Designed for fast tool free attachment to Gripple Brackets using our quarter turn technology.

Universal Compatibility

Universal Compatibility

One adjustable clamp fits pipe sizes from 15 mm to 152 mm steel, replacing up to 13 traditional rings. This reduces SKUs, simplifies stock, and streamlines installation.

Height Adjustment

Height Adjustment

Thread and nut mechanism allows for easy height adjustment, ideal for where different sizes services all need to run at the same level.

Service Protection Built In

Service Protection Built In

Rubber strapping and integrated protection pads cushion the suspended service, helping to prevent vibration damage, reduce wear, and maintain long-term system integrity.

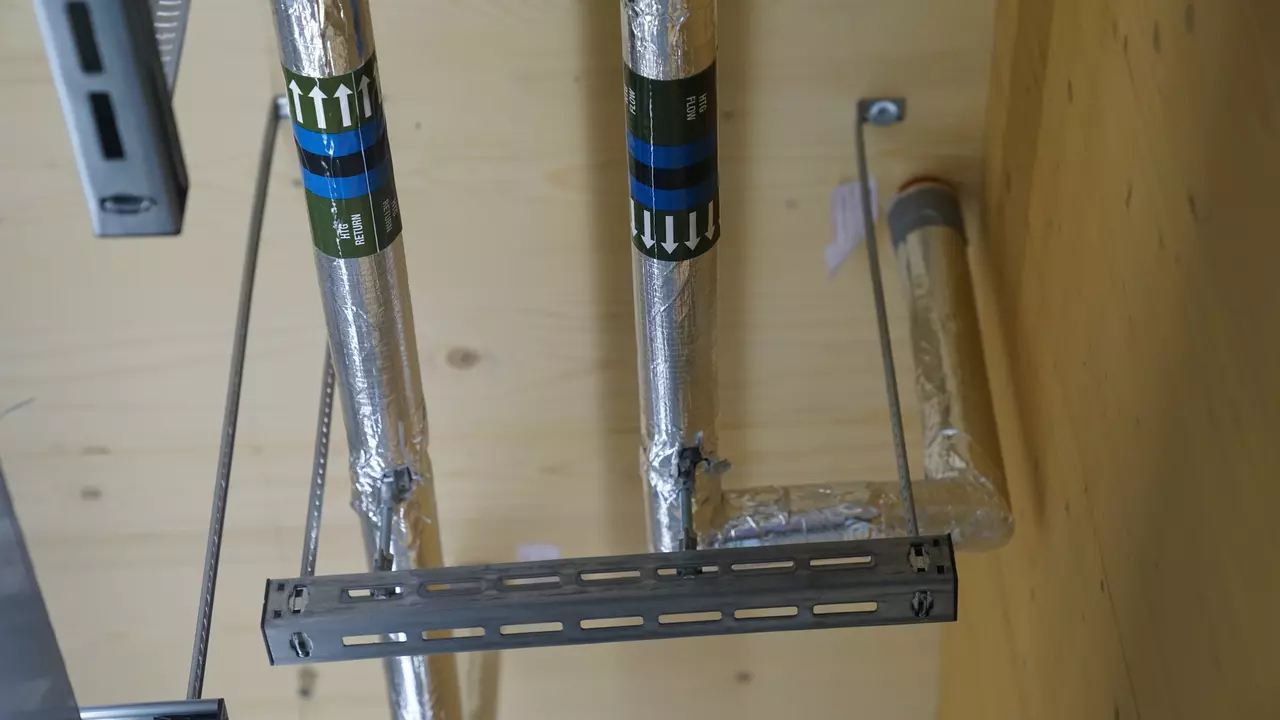

Use with Gripple Suspension

Use with Gripple Suspension

Available as part of a ready to install, end to end, wire or ridged track Gripple suspension kit.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are on hand from start to finish to provide project engineering drawings, take off’s, on-site inspections, training and support where needed.

Quarter Turn Installation

Quarter Turn Installation

Designed for fast tool free attachment to Gripple Brackets using our quarter turn technology.

Universal Compatibility

Universal Compatibility

One adjustable clamp fits pipe sizes from 15 mm to 152 mm steel, replacing up to 13 traditional rings. This reduces SKUs, simplifies stock, and streamlines installation.

Height Adjustment

Height Adjustment

Thread and nut mechanism allows for easy height adjustment, ideal for where different sizes services all need to run at the same level.

Service Protection Built In

Service Protection Built In

Rubber strapping and integrated protection pads cushion the suspended service, helping to prevent vibration damage, reduce wear, and maintain long-term system integrity.

Use with Gripple Suspension

Use with Gripple Suspension

Available as part of a ready to install, end to end, wire or ridged track Gripple suspension kit.

Technical and Engineering Support

Technical and Engineering Support

Our technical and engineering teams are on hand from start to finish to provide project engineering drawings, take off’s, on-site inspections, training and support where needed.

Range Variants

Our Quarter Turn Height Adjustable Universal Clamps are available with a range of pad variants helping them securely fit pipes of different diameters as well as reduce unwanted noise.

Standard Pad Large Pad Acoustic Pad
Description Rubber pad for insulation purposes. Improved fit for large diameter pipes. Most suitable to 75 mm and above. Designed to reduce noise related to water pressure.
Noise Reduction 14 dBA 18 dBA 23 dBA

How it Works:

Installing our Height Adjustable Universal Clamp is quick and easy, requiring minimal tools. See how it works below, or download the full technical data pack for more details.

 Download the Technical Data Pack

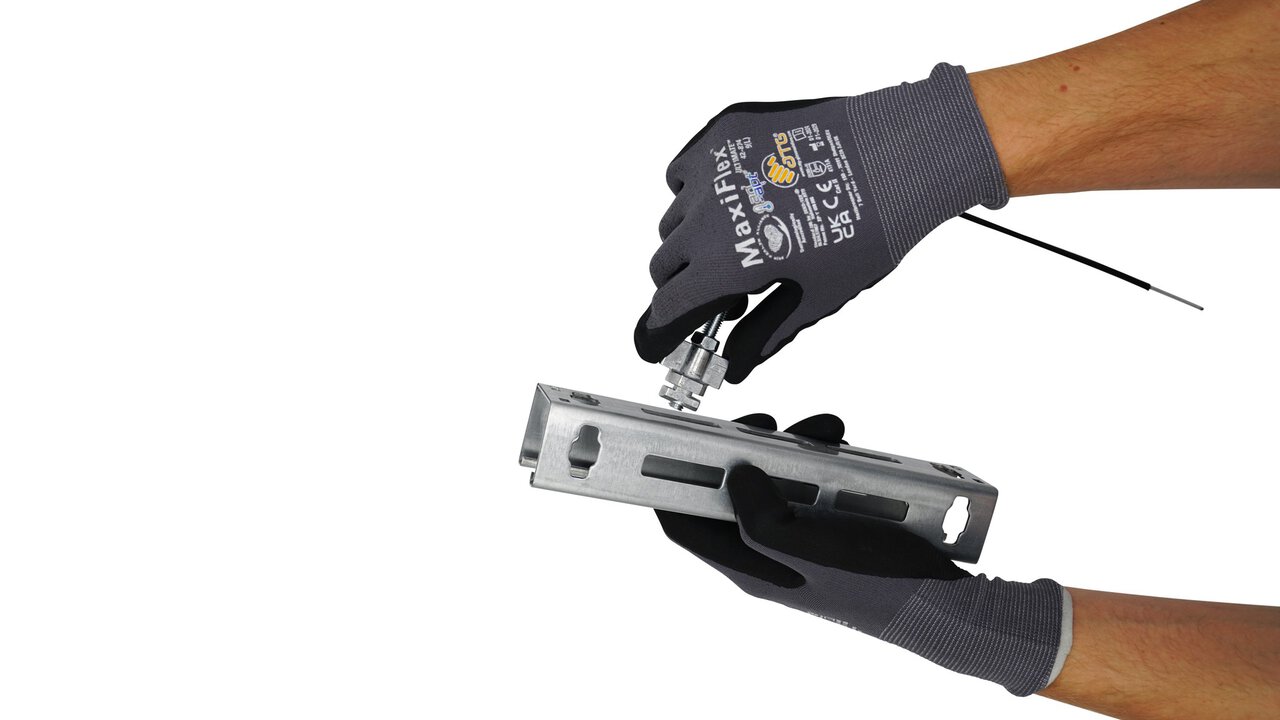

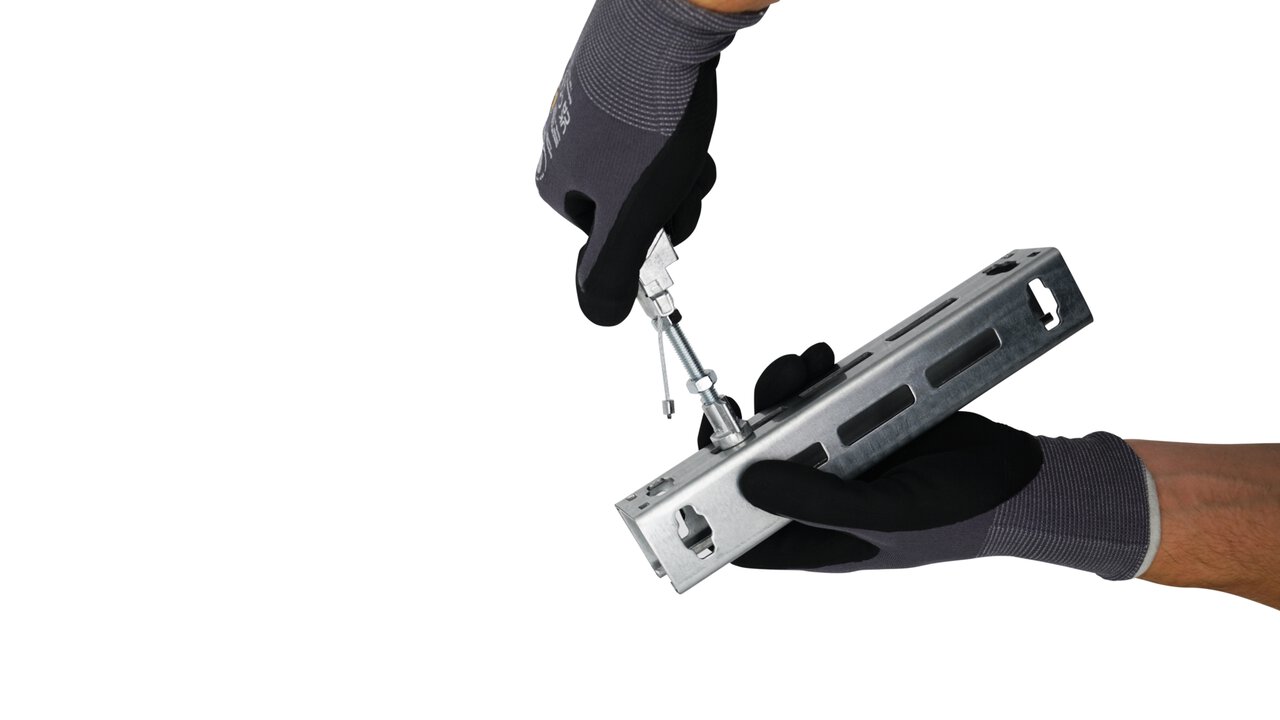

Step 1: Use the quarter turn fixing point to attach your clamp to your Gripple bracket.
Step 2: Wind the thread to your desired height and secure using the nut to prevent movement.

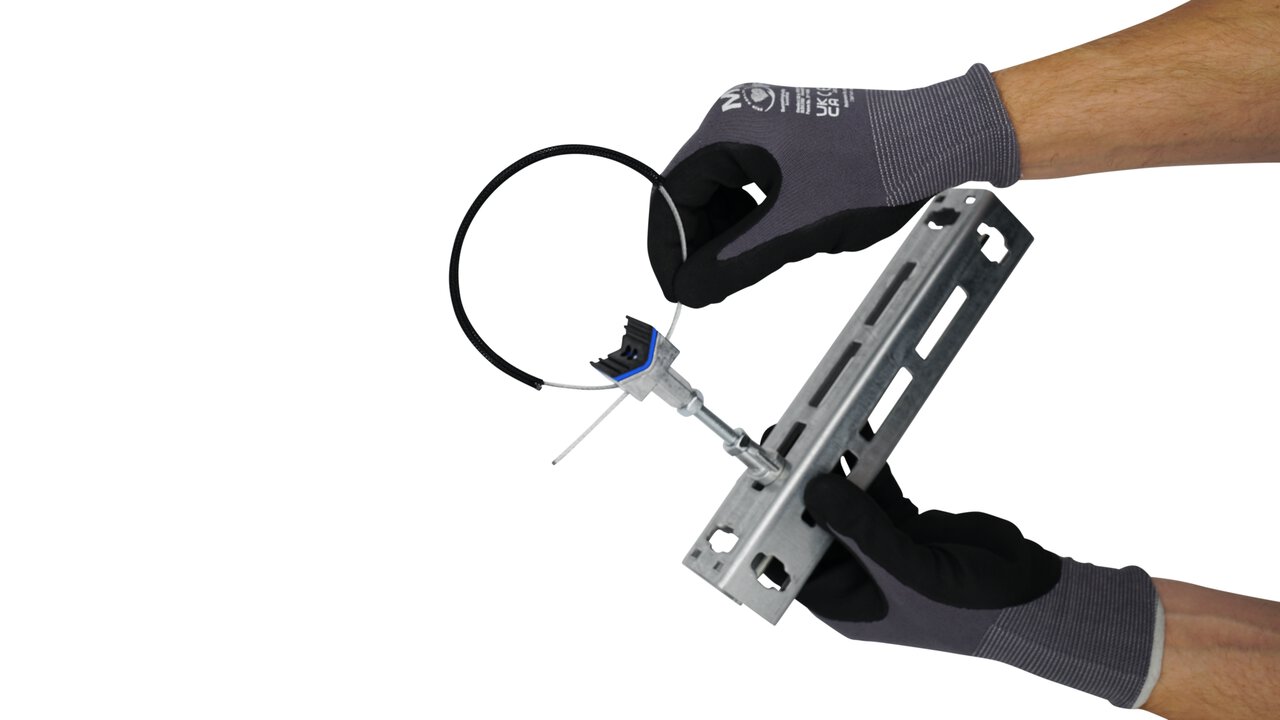

Step 3: Create a wide loop by inserting the loose end of your wire into the hole on the pipe clamp.

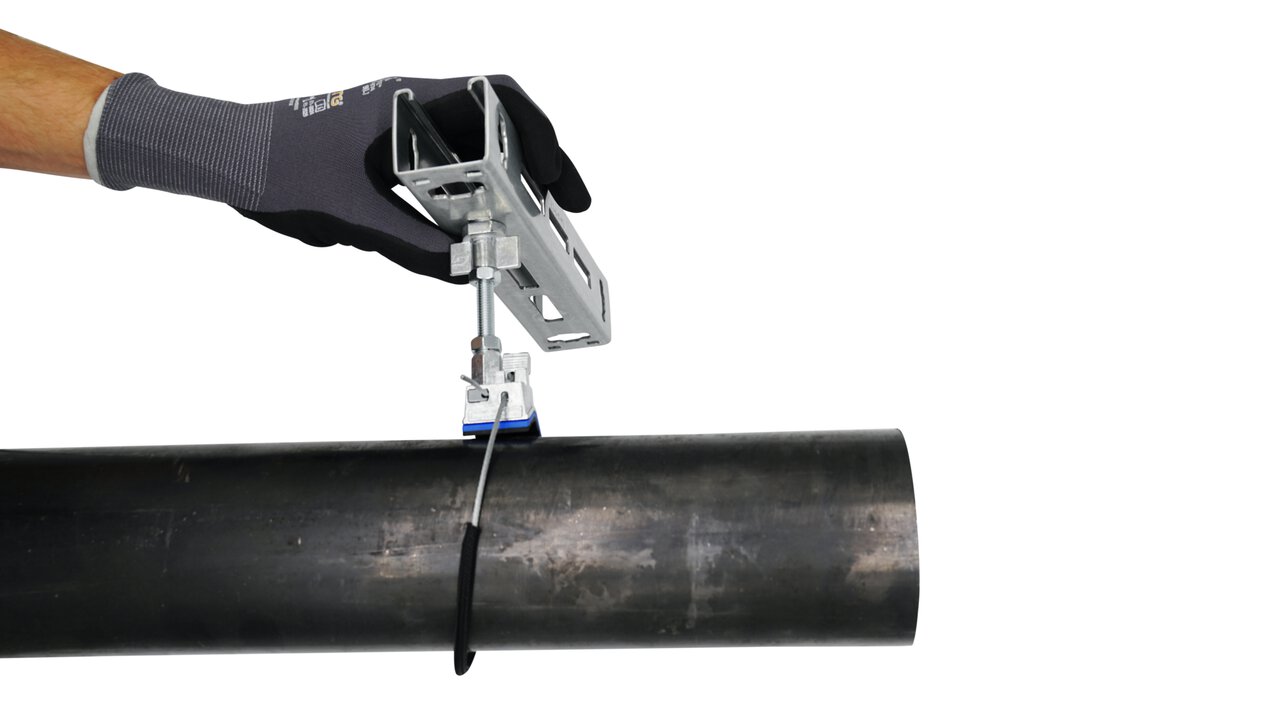

Step 4: Insert your pipe into loop.

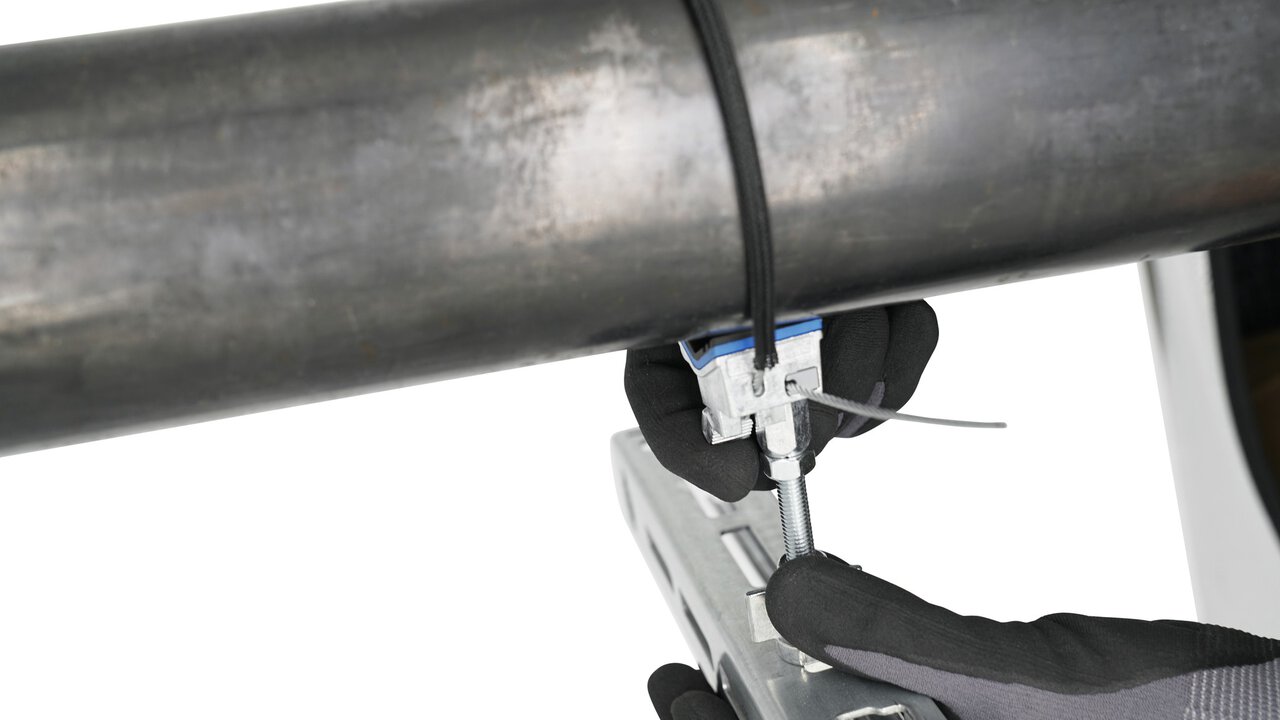

Step 5: Pull the wire tight to secure the clamp in place.

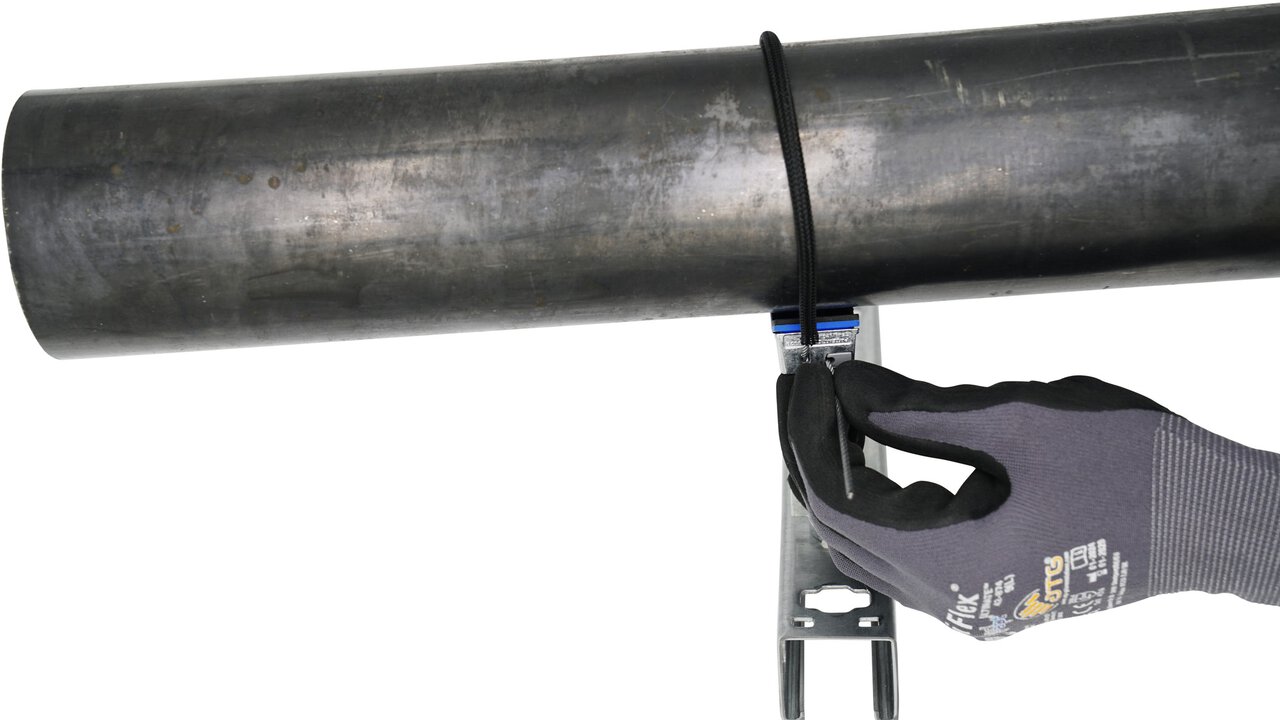

Step 6: Pull down the locking arm to secure in place and complete the installation.

Related Products

Universal Bracket

Pre-cut Channel Alternative

Bracket Widths: 200 mm – 1500 mm
Max Single Point Load: 200 kg
Max Uniformly Distributed Load: 200 kg
View Product

Fast Trak® – Range

Prefabricated Trapeze Bracket System

Maximum System Load: 200 kg
Suspension Space: 170 mm – 1470 mm
Drop Height Range: 200 mm – 1500 mm
View Product

Low Profile Bracket (Header Rail)

Direct Fix Header Rail or Pipe Clamp Bracket

Maximum Uniform Load : 150 kg
Pre-cut Size Range: 250 mm – 1550 mm
View Product

Universal Clamp QT – (Quarter Turn)

Adjustable Pipe Clamp for Gripple Brackets

Max Load Rating: 75 kg
Maximum Pipe Diameter: 150 mm | 6 in
Noise Reduction: > 23 dB (depending on variant)
View Product

Universal Clamp – Threaded M8 / M10

Adjustable Pipe Clamp

Max Load Rating : 75 kg
Maximum Pipe Diameter: 150 mm | 6 in
Noise Reduction: > 23 dB (depending on variant)
View Product

Gripple Clamp for Strut (GCS)

Universal Adjustable Pipe Clamp

Maximum Pipe Outside Diameter: 12” | 30 cm
Safe Working Load (Above Mount/Racked): 850 lbs | 385 kg
Safe Working Load (Below Mount)*: 120 lbs | 54 kg *Not Applicable to GCS-Extended Strap
View Product

Quarter Turn Conduit Clamp

Conduit Clamp for Gripple Brackets

Safe Working Load: 105 kg
Conduit Compatibility: from 12.5 mm to 100 mm
QT Bracket Compatibility: Fast Trak, Universal and Low Profile Gripple Brackets
View Product

Quarter Turn Trunking Clamp

Trunking Clamp for Gripple Brackets

Safe Working Load: Up to 50 kg
Sizes available: 50 x 50 mm, 75 x 75 mm, 100 x 100 mm and 150 x 150 mm
Gripple Bracket Compatibility: Fast Trak, Universal Bracket and Low Profile Bracket
View Product

Common Applications

Pipework

Electrical

Pipework

Electrical

Frequently Asked Questions

The overall installation will not change. When using Gripple clamps, contractors would still use the same centres as traditional users, the difference being Gripple solutions deliver faster installation times. The product is supplied as a ready to use kit, meaning the installer doesn’t need to cut threaded rod to size, which offers considerable health and safety, and labour saving benefits. Such savings will ensure savings on project costs and allow contractors to deliver projects faster than they would do with traditional

Height Adjustable Twist Clamp, like the rest of the Gripple range, is a value-added product which will deliver significant labour savings based on faster installation times. More efficient use of labour, coupled with the product’s delivery as a ready- to-use installation kit will ensure savings on the project.
