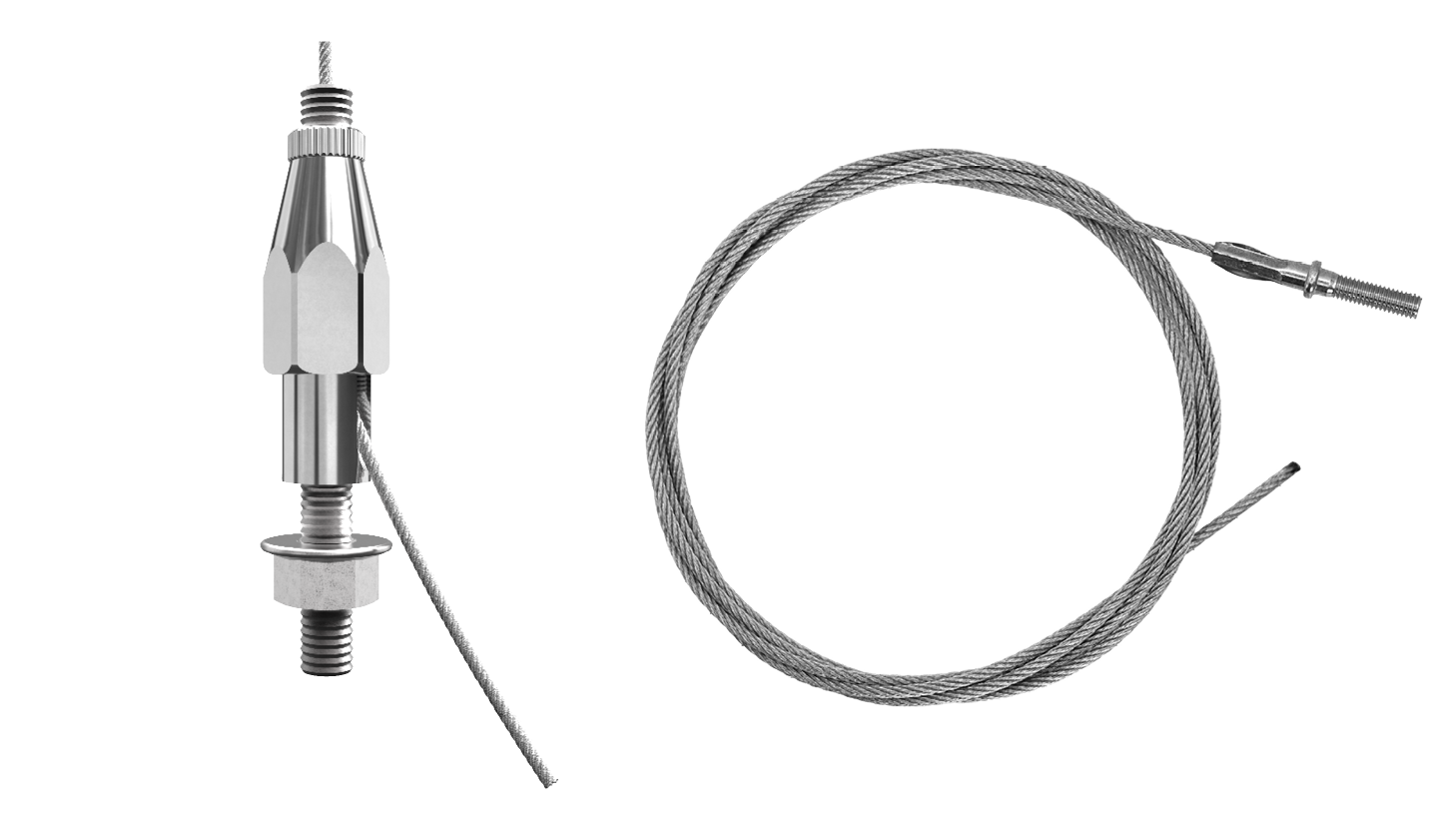

Trapeze Plus FR – Side Exit Single Channel Suspension Fixing with Side Thread Exit

SKU # MTS-2620, MTS-3630, MTS-2825, MTS-3835

A fire rated wire suspension solution with a side exit and flange nut foot, specifically designed to avoid clashes with services.

Max Working Load

Max Working Load:

90 kg

Available Drop Lengths

Available Drop Lengths:

1 - 10 m (bespoke sizes available on request)

Fire Testing

Fire Testing:

Externally tested to F120 standards

Enquire Now

Descargas de productos

Trapeze Plus FR - Side Exit - Technical Data PackFire Rated Solutions Brochure
Ver todas las descargas
Trapeze Plus FR – Side Exit Single Channel Suspension Fixing with Side Thread Exit
SKU # MTS-2620, MTS-3630, MTS-2825, MTS-3835
1

Simple Fire Rated Suspension for Challenging Locations

Specifically engineered for complicated mechanical applications, the Trapeze Plus FR – with Side Exit offers a fire-rated wire suspension system with a flange nut foot and a unique side exit to avoid clashes with services.

Available in No.2 and No.3 sizes, it’s designed for affixing to mechanical equipment or supporting single pipework installations. Ideal for blind tapped or through holes, it’s the smart choice for secure, compliant fixing in challenging locations.

This variant of the Trapeze Plus FR ensures fast installation, flexible positioning, and fire-rated performance, which streamlines setup for contractors and specifiers alike. Built with quality and ease-of-use in mind, it’s the dependable solution when precision and fire safety are non-negotiable.

Leer más
Specifically Designed

Specifically Designed

For applications where wire cannot exit centrally, the Trapeze Plus FR with Side exit, avoids clashes with services.

Strong

Strong

Available in No.2 and No.3 sizes, the Trapeze Plus FR with Side Exit can hold loads up to 90 kg with a safety factor of 3:1.

Compliant

Compliant

Externally Tested to F120 Standards, using Trapeze Plus FR Side Exit clearly demonstrates its compliance with project regulations.

Safer

Safer

Gripple wire suspension methods require no hot work permits and less time working at height, enhancing on-site safety for your team.

Fast

Fast

The Trapeze plus range eliminates cutting, requires minimal tools, and offers tool-free adjustment, making them quicker and easier to install than threaded rod or traditional wire methods. Even for first-time users.

Technical Services

Technical Services

Our in-house technical services are available to help during all project stages. They can provide bespoke technical literature and site drawings as well as on-site visits and support.

Specifically Designed

Specifically Designed

For applications where wire cannot exit centrally, the Trapeze Plus FR with Side exit, avoids clashes with services.

Strong

Strong

Available in No.2 and No.3 sizes, the Trapeze Plus FR with Side Exit can hold loads up to 90 kg with a safety factor of 3:1.

Compliant

Compliant

Externally Tested to F120 Standards, using Trapeze Plus FR Side Exit clearly demonstrates its compliance with project regulations.

Safer

Safer

Gripple wire suspension methods require no hot work permits and less time working at height, enhancing on-site safety for your team.

Fast

Fast

The Trapeze plus range eliminates cutting, requires minimal tools, and offers tool-free adjustment, making them quicker and easier to install than threaded rod or traditional wire methods. Even for first-time users.

Technical Services

Technical Services

Our in-house technical services are available to help during all project stages. They can provide bespoke technical literature and site drawings as well as on-site visits and support.

Range Variants

The Trapeze Plus FR with Side Exit is available in No.2 and No.3 sizes.

Load Rating Safety Factor Wire Size
Trapeze Plus FR 2 45 kg 3:1 2.0 mm
Trapeze Plus FR 3 90 kg 3:1 3.0 mm

Kit de suspensión listo para instala

A fire rated wire suspension solution with a side exit and flange nut foot, specifically designed to avoid clashes with services.

End Fixing Your Substrate Fixing
Wire Pre-cut and Fused Wire
Hanger Your Hanger
+

1 Fijación del sustrato (fijación de los extremos)

Todos nuestros kits de suspensión incluyen una amplia gama de fijaciones para sustratos, diseñadas para funcionar con distintos tipos de superficies y puntos de fijación. Descubra a continuación qué fijaciones están disponibles para este producto

Loop

Hanger using a non-invasive, simple, choke knot technique

Safe Working Load: 325 kg
Available Sizes:
No. 1 : 1.5 mm
No. 2: 2.0 mm
No. 3: 3.00 mm
No. 4: 4.75 mm
No. 5: 6.00 mm

*System working load based on product and substrate fixing combined

View Substrate Fixing

Stud

Ideal for anchoring into concrete ceilings.

Safe Working Load: 250 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)
No.4: 4.75 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Channel Nut

Designed specifically for use with channel, to suspend all types of building services.

Safe Working Load: 250 kg
Available Sizes:
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)
No.4: 4.75 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Straight Eyelet

Suitable for a variety of applications that require bolting to brackets or fixtures.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

Toggle

For fastening through profile roof cladding, light fittings and other cavities.

Safe Working Load: 110 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing
Snap Hook - 1 Snap Hook - 1

Snap Hook

Ideal for attachment to cable basket, purlin clips and light fittings.

Safe Working Load: 90 kg
Available Sizes:
No. 1: 1.5 mm
No. 2: 2.0 mm
No. 3: 3.00 mm

*System working load based on product and substrate fixing combined

View Substrate Fixing

Top Hat

Aesthetic fixing for use with a wide range of Gripple hangers

Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing
Snap Hook - 4 Snap Hook - 4

Barrel

Ideal for use on signage, or exposed services, such as retail and office environments.

Safe Working Load: 55 kg
Available Sizes:
No.1: 1.5 mm (Wire Diameter)
No.2: 2 mm (Wire Diameter)
No.3: 3 mm (Wire Diameter)

*System working load based on product and substrate fixing combined

View Substrate Fixing

2 Longitud del cable

De 1 a 10 m

(otras longitudes disponibles bajo petición)

Todos nuestros kits de suspensión listos para instalar incluyen un cable precortado, con bucle y prensado, en la longitud que usted elija. Las opciones estándar están disponibles entre 1 y 10 m.

3

Trapeze Plus FR Hanger

A fire rated wire suspension solution with a side exit and flange nut foot, specifically designed to avoid clashes with services.

  • Max Working Load: 90 kg
  • Wire Drop Lengths: 1 m – 10 m (bespoke sizes available on request)
  • Fire Rated: Externally tested to F120 standards

Have you found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or use our additional resources.

Speak To An ExpertGet Technical Support
1

Trapeze Plus FR – Side Exit

SKU # MTS-2620, MTS-3630, MTS-2825, MTS-3835

A fire rated wire suspension solution with a side exit and flange nut foot, specifically designed to avoid clashes with services.

Key Specifications

Max Working Load: 90 kg
Available Drop Lengths: 1 – 10 m (bespoke sizes available on request)
Fire Testing: Externally tested to F120 standards

Available Sizes

No. 2: 45 kg
No. 3: 90 kg
Find a SupplierView Product Page

Descargas de productos

Trapeze Plus FR – Side Exit – Technical Data PackFire Rated Solutions Brochure

Found what you are looking for?

Contact our Gripple experts for technical advice or project assistance or find a local stockist.

Speak to an ExpertEncontrar un almacenista

Trusted by the Experts:

“The Gripple systems utilised on this project help us to control the project timescales and provide an aesthetic solution for the client. The Trapeze Plus was perfect for the installation of the module units.

We could pre-install onto the channel, and using wire allowed more flexibility when installing the modules compared to threaded rod. We look forward to utilising Gripple on more projects in the future,”

Airedale International Air Conditioning HQ I Leeds

Read the full case study here

Common Applications

HVAC Equipment

Pipework

Cable Containment

Busbar & Busduct

Ductwork

Combined Modules

HVAC Equipment

Pipework

Cable Containment

Busbar & Busduct

Ductwork

Combined Modules

Related Products & Accessories

Drop-In Anchor

Punch-activated Drop-In Anchor for fixing into cracked and non-cracked concrete, and hollow core ceiling slabs.

View Accessory

M8 Decking Adaptor

Designed to lock quickly and securely into the re-entrant channel of decking profiles, the M8 Decking Adaptor can be used with any Gripple Hanger to suspend a variety of M&E services.

View Accessory

Small Wire Cutters

Ideal for cutting wire rope construction 7×7 or 7×19 from diameter 1.5 mm up to 6 mm.

View Accessory

Related Downloads:

Trapeze Plus FR – Side Exit (M6) – Lloyds Approval
Trapeze Plus FR – Side Exit (M8) – Lloyds Approval
Trapeze Plus FR – Side Exit – Technical Data Pack
Building Services Product Guide

Frequently Asked Questions

The side exit allows easy alignment into blind tapped holes or through holes in mechanical equipment, making it ideal for tight or inaccessible spaces.

This variant is available in sizes 2 and 3, which work with wire sizes 2.0m and 3.0m, respectively. This size range offers flexible suspension options for various mechanical support applications and working loads of up to 90kg.

Definitely. Like other Trapeze Plus FR variants, it features a quick and easy installation process, saving time on-site without compromising on strength, reliability or compliance.
